How To Adjust Camber And Caster

These are eccentric bolts that can change your angle by a few degrees. Using alignment equipment and the manufacturer's instructions, measure the camber settings.

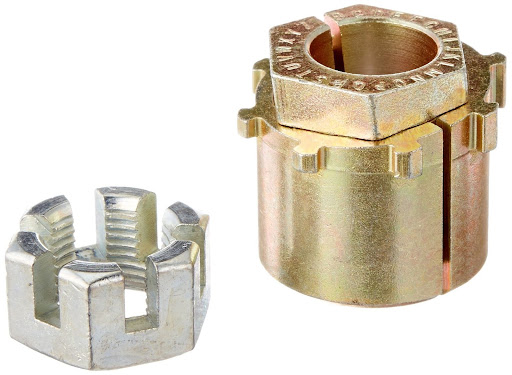

Alignment Caster/Camber Bushing Front MOOG K80108 eBay

By loosening the strut rod nut and either pushing the strut inboard or pulling it outboard the camber can be adjusted by approximately 0.25 degree.

How to adjust camber and caster. Caster and camber can be hard to master. These items fit to the top of the spring and damper set up allowing the damper angle to be altered and therefore the camber angle for the front wheel to be altered. Before measuring the camber, park the vehicle on a level surface.

Both the wheels should have a uniform alignment for a proper camber. The later ones, like yours, simply have a bolt that needs to be loosened up, the factory locating plate thown away and replaced by a washer, then the arm slides to wherever required and the bolt tightened. Excessive camber in one side can indicate a worse problem like a bent axle tube.

You need to ensure that your chevy truck has camber bolts. It’s a very simple formula on the surface, but it becomes when trying to decide what is right for you, your driving style, and your vehicle. The cam style adjustment, while it is more convienent to the alignment tech, is not required to correct the camber or caster.

Camber and caster adjustment bolts are a possible option. Front camber is adjusted by moving the top of the strut and spring assembly. Shims are used to change the camber on short arm long arm suspension systems.

When you determine the correct settings for each, you need to maintain those settings. A common way to adjust camber at the front wheels of the car with macpherson strut suspension is to install adjustable top mounts. If you still want to adjust the rear camber, you can do it with the same process.

You can do this by using a couple of framing squares or a straight edge. The easiest way to measure how much camber your front end has is to use a framing square and measuring tape. Use the parking brakes to jack up your car.

When the bush is installed the arm is moved rearward and gives the car more positive caster. Use the above image to determine if you have positive or negative camber. These cams are sometimes found on the rear suspension of vehicles.

Caster and camber settings are set relative to the type of car and the design of the racetrack. Set the jack aside and check if you could adjust the camber to the perfect angle. Camber shims alter the spindle angle slightly to adjust camber.

This bush mounts the back or front of the lower wishbone to the car and has the centre bolt hole offset in a forward direction. Adding caster to your kart is what you'll want to do most of the time. The honda jazz runs a positive caster.

Unlike camber where the king pin bolt moves side to side, changing caster revolves around moving the king pin bolt forward or backward. Check the camber specifications for your vehicle. Keep your machine on the lift and make adjustments and measurements while it’s still in the air.

Caster is preset at the factory and should only be adjusted after all other possible sources have been inspected and corrected as necessary. Check and adjust toe after adjusting the camber or caster angle. Just keep in mind that with the suspension at full drop, you’ll have roughly 2 degrees more positive camber than you’ll have on the ground.

They’re added or subtracted to the upper or lower control arm. Rear camber is adjusted by means of eccentric cams on the rear upper arms. When we did our first home alignment, this was where we screwed up.

To increase positive caster, loosen bolts securing upper ball joint and move shims from rear of ball joint to front of ball joint. Mega shortcut way to adjust camber: You womt be able to alter the rear at all buddy, the front is adjustable but the bolts do seize in the bushes so need to be cut out and repla ed to make any adjustment.

You have to place the framing squares right next to the tyres and check from a distance. One common way to adjust caster is to install an offset caster bush. Some vehicles utilize an upper strut mount that has slots to adjust the camber accordingly.

If your camber is off by a few degrees you have two options. First off, be sure that the machine is on level ground. Some vehicles have eccentric cams located on the upper control arm, and others are located lower.

Step #3 check if the chevy truck has camber bolts. You can do this by looking at the vehicle’s strut bolts. Check your vehicle for steering and suspension wear.

However, some vehicles do have ways for you to adjust the caster angle. Attach the camber gauge to the spindle. Note the length of the green line in between the tyres and body.

Once you have set the camber and caster, you can adjust the toe. It helps to keep the vehicle traveling in a straight line and return the tyre to an upright position when coming out of a turn. Adjustments that require moving the front and the rear of the lower arm should be made equally.

If not, repeat the process again until you are satisfied with the result. Others use an eccentric bolt and cam that, when rotated, moves the top of the tire inward and outward, adjusting the camber angle. The most common way to adjust your caster angle involves adding or removing shims to obtain the proper angle.

For people who don’t know, the camber bolt of the variety in the aftermarket will include a washer with a small handle. There are several methods to adjust camber, depending on the vehicle and its suspension. To increasing caster, you'll want to lean the king pin bolt backwards, and, as you guess, removing caster is leaning the king pin bolt forward.

A lot of people tend to believe that they have to have the best of the best in terms of equipment to win races, when in reality if you can master these proven. Chevy trucks do not usually need rear camber adjustment as the front camber adjustment does most of your work. As a bolt is turned, the strut arm is moved inward or outward for camber adjustments.

Use camber adjusting shims or camber adjusting upper ball joints. Loosen the lower arm bolt (s) and adjust the caster and camber settings according to manufacturer’s instructions. To adjust the caster and camber, refer to the following chart.

Adjusting the camber angle on a vehicle affects the total toe. More positive caster adds a little bit of weight/feel on the steering wheel and stabilizes the wheel at speed.
